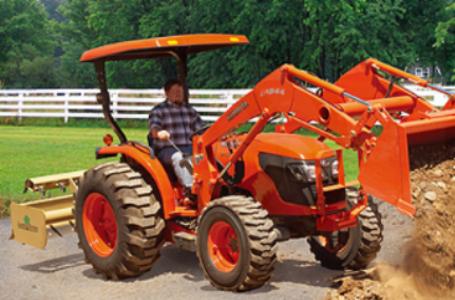

2010 Kubota MX5100 4WD Special Utility Tractor
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Model
    • MX5100 4WD
    Engine
    • Engine: V2403-M-T
    • Type: E-TVCS, Indirect injection, liquid cooled diesel
    • Engine gross power: 52.2 HP (38.9 kW)
    • Engine net power: 50 HP (36.8 kW)
    • PTO power: 44 HP (32.4 kW)
    • No. of cylinders/Aspiration: 4/Turbocharged
    • Total displacement: 148.5 cu. in. (2434cc)
    • Fuel tank capacity: 12.6 gal. (48 l)
    • Air Cleaner: Dry-dual element
    • Alternator: 45 Amp
    Transmission
    • No. of Speeds: 8F/8R
    • Main gear shift (4 speeds): Partially synchronized (3rd & 4th)
    • Shuttle: Mechanical shuttle
    • Main clutch: Dry single plate
    • Brake: Mechanical wet disc
    • Differential lock: Rear standard (mechanical)
    PTO
    • PTO type: Live independent, hydraulic PTO with PTO brake, wet clutch
    • Speed: 540 rpm
    Hydraulics
    • Main pump capacity: 9.5 gpm (35.8 l/min)
    • Power steering: 4.9 gpm (18.6 l/min)
    • 3-point hitch: Category 1 & 2
    • Control system: Position (std), Draft (opt)
    • Lift capacity at 24 in. behind lift point: 2,310 lbs. (1,050 kg)
    • No. of remote valves: Maximum 3 (opt)
    Tires
    • Standard Front/Rear: 9.5-16/14.9-26
    Traveling Speeds (w/std. Ag. tires)
    • Forward First: 1 mph (1.6 km/h)
    • Forward Second: 1.4 mph (2.2 km/h)
    • Forward Third: 2.3 mph (3.6 km/h)
    • Forward Fourth: 3.3 mph (5.4 km/h)
    • Forward Fifth: 4.7 mph (7.6 km/h)
    • Forward Sixth: 6.7 mph (10.8 km/h)
    • Forward Seventh: 10.9 mph (17.5 km/h)
    • Forward Eighth: 16 mph (25.9 km/h)
    • Reverse First: .9 mph (1.5 km/h)
    • Reverse Second: 1.3 mph (2.1 km/h)
    • Reverse Third: 2.1 mph (3.3 km/h)
    • Reverse Fourth: 3.1 mph (4.9 km/h)
    • Reverse Fifth: 4.3 mph (7 km/h)
    • Reverse Sixth: 6.1 mph (9.9 km/h)
    • Reverse Seventh: 10 mph (16.1 km/h)
    • Reverse Eighth: 14.7 mph (23.7 km/h)
    Other Features
    • 4WD drive system: Bevel gear type
    • Steering: Hydrostatic power type
    • Hood type/ Pedal type: Full open hood/ Hanging pedals
    • Deck type: Flat
    Dimensions & Weight
    • Overall length (w/o 3P): 122.8 in. (3120mm)
    • Overall height (top of ROPS): 95.7 in. (2430mm)
    • Overall width (Minimum): 69.7 in. (1770mm)
    • Wheelbase: 74.6 in. (1895mm)
    • Min. ground clearance: 15.2 in. (385mm)
    • Front tread width: 52.2 in. (1325mm)
    • Rear tread width: 54.1-58.7 in. (1375-1490mm)
    • Turning radius (w/brake): 8.9 ft. (2.7m)
    • Tractor weight: 3,620 lbs. (1,642 kg)
    Optional Front Loader
    • Joystick Control
    • Rounded Boom: The front loader features a rounded boom that matches the hood, for a sleek look and increased visibility during loader operations.
    • Protected Cylinder Tubes
    • Front Guard (optional): The MX5100's front guard provides additional front-end protection and folds down for quick and easy hood access.
    • High-quality Cylinders: The LA844 loader features high-quality, heavy-duty cylinders to bring more muscle to your loader work. The durable plating offers impressive pressure resistance and achieves superior rust protection.
    • 4-bar linkage: The 4-bar bucket linkage increases the rollback and dumpling angle for quicker scooping and dumping.
    • Skid Steer-type Quick Coupler (optional)
    • Kubota's front loader is designed to match the performance of the MX5100, ensuring precise operation and improved productivity. The high lift capacity and lift height deliver impressive performance with each load, and the single-lever joystick control makes operation child's play. An optional Skid Steer-type quick coupler is available for fast and easy attach/detach of attachments, such as buckets and bale spears, and the hydraulic tubes are enclosed within the round boom for protection and a tidy look.
    • Lift Capacity: 2,443 lbs. (Pivot Pin)
    • Max. Lift Height: 110.7 in.
    Optional Backhoe
    • Dig fast and deep with Kubota's performance matched backhoe. This easy-to-attach/detach unit delivers two-lever joystick control for fast and smooth operation, and offers a variety of bucket widths to match any job.
    • Digging Depth: 9 ft.
    • Digging Force: 3,871 lbs. (Bucket)
    • Digging Force: 2,593 lbs. (Dipperstick)
    • Quick Attach/Detach
    • 22 degree Ample Departure Angle
    Other Optional Implements
    • HR15 & MR15 Box Scraper
    • HR25 Box Scraper
    • HR35 & MR35 Box Scraper
    • Broadcast Spreader
    • Core Aerator
    • Disc Harrow
    • Flail Mower
    • AFM4014 Flex Mower
    • AFM4016 Flex Mower
    • AFM4211 Flex Mower
    • Grooming Mower
    • Landscape Rake
    • Post Hole Digger
    • Powered Rake
    • Quick Hitch
    • RB25 & RB35 Rear Blade
    • RBT35 Rear Blade
    • RCR26 Rotary Cutter
    • RCR1884 Rotary Cutter
    • RCR2596 Rotary Cutter
    • RCR3596 Rotary Cutter
    • RTA25 Rotary Tiller
    • RTA2562 Rotary Tiller
    • Soil Pulverizer
    • Straw Crimper

    Specifications

    Engine
    Engine Type E-TVCS, Indirect injection, liquid cooled diesel
    Horsepower 52.2 HP (38.9 kW)
    PTO HP 44 HP (32.4 kW)
    Specifications
    Wheelbase 74.6 in. (1895mm)
    Height 95.7 in. (2430mm)
    Width 52.2 in. (1325mm)
    Weight 3,620 lbs. (1,642 kg)
    Ground Clearance 15.2 in. (385mm)
    Tire Size 9.5-16/14.9-26
    General
    Fuel System Diesel
    Fuel Capacity 12.6 gal. (48 l)
    Transmission 8F/8R
    Brakes Mechanical wet disc
    Hydraulics Main pump capacity: 9.5 gpm (35.8 l/min)

    Compare Models

    		 Print








    Year 2010
    Manufacturer Kubota
    Model MX5100 4WD Special Utility Tractor
    Style Utility
    Engine
    Engine Manufacturer
    Engine Type E-TVCS, Indirect injection, liquid cooled diesel
    Horsepower 52.2 HP (38.9 kW)
    PTO HP 44 HP (32.4 kW)
    Rated RPM
    Bore and Stroke
    General
    Fuel System Diesel
    Fuel Capacity 12.6 gal. (48 l)
    Transmission 8F/8R
    Brakes Mechanical wet disc
    Hydraulics Main pump capacity: 9.5 gpm (35.8 l/min)
    Drive Type
    Specifications
    Wheelbase 74.6 in. (1895mm)
    Height 95.7 in. (2430mm)
    Width 52.2 in. (1325mm)
    Weight 3,620 lbs. (1,642 kg)
    Ground Clearance 15.2 in. (385mm)
    Tire Size 9.5-16/14.9-26
