2010 Kubota BX2660 Sub-Compact Tractor


Request a Quote Financing Calculator Request a Brochure Financing Form

Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

Print Brochure

Start with the strength and versatility of a compact utility tractor. Blend them with the agile handling and feel of a garden tractor. Add new upgraded features, then reinforce the end product with incomparable reliability, and you've got the Kubota BX-Series.


Be the landowner you always wanted to be with the all-new Kubota BX2660. No other sub-compact tractor combines so much power, comfort and versatility into a single alt-purpose work machine. From headlight to hitch, the BX2660 delivers the kind of quality you expext from Kubota. Nothing less than extraordinary.


Engine:
One of the world's most powerful sub-compact tractors. With its 25.5HP, 3-cylinder Kubota diesel engine, no other subcompact tractor combines power, comfort and versatility like the BX2660. This powerful engine directly translates into more traction when hauling loads or using implements as well as better mower performance.


2-Pedal HST Operation:
When frequent changes in speed and direction are needed, the HST responds with its smooth operating forward and reverse pedals, leaving your hands free for steering and implement control. By splitting one pedal into two, operators are offered more foot room on the operator's platform.


Cruise Control:
For carefree mowing of large spaces, set the BX-Series' cruise control to maintain a constant speed without keeping your foot on the forward pedal.


Versatile Category I 3-Point Hitch:
Put your BX-Series to work with its Category I 3-point hitch. This sturdy and technologically advanced hitch allows you to attach a wide array of full-fledged tractor implements.


Digital Tachometer:
The new BX-Series tractors feature a digital tachometer that offers operators more precise monitoring of engine RPM, especially when operating the PTO. When the engine is off, the digital tachometer displays the hour meter.


Deluxe Reclining Seat:
We've improved our seat for the BX2660. With great thigh and hip support, and with the ability to recline, this luxury seat will keep you comfortable on those long days.


Spacious Operator Area:
The pedal layout on the new BX2660 helps aid operator comfort. The forward and reverse HST pedals are split and the differential lock is located on the side of the seat. This design provides a larger deck area, which offers more foot room, eliminating the cramped feel of most other sub-compact tractors.


Front Implement 4-position Control Valve:
Available Front 4-position Control Valve provides you with the ability to quickly and easily attach the front loader and other front-mounted implements.

    Engine
    • Engine Type: Liquid-cooled, 3-cylinder diesel
    • Model: Kubota D1005
    • Engine gross HP at 3200 rpm: 25.5 HP (19.0 kW)
    • PTO horsepower at 3200 rpm: 19.5 HP (14.5kW)
    • Displacement: 61.1 cu. in. (1001 cc)
    • Fuel tank capacity: 6.6 gal. (25 l)

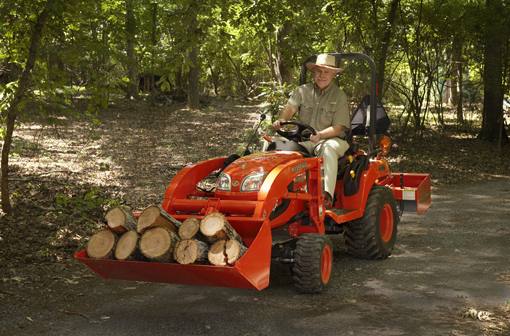

    Optional Front Loader
    • Rounded Boom: The BX's rounded boom perfectly complements the new overall tractor design. But its benefits don't end there. It also offers greater visibility.
    • Easy Attach/Detach: The BX front loader has a new H-shaped stand, making it easier to attach and detach. This design also provides better protection for hoses when the stand is folded.
    • Hydraulic lines protection: For the new BX-Series we've tucked the loader Hydraulic line inside the boon for greater protection and better visibility.
    Optional Mower
    • Standard Deck: This 3-blade mower offers a wider cutting area allowing you to cut more grass in a single pass.
    • Fine Cut Deck: For finer cutting Jobs and more beautiful end results, our Fine Cut Deck is exactly what you're looking for. Kubota's baffle structure allows the grass to be cut more finely giving you a closer and more uniform cut. Our Fine Cut Deck also offers excellent performance with our optional mulching kit.
    • Mowing - Height Adjustment Dial: A simple twist of the dial adjusts the mower height in 1 ¼ in. increments to your desired cuffing level.
    • Durable Shaft Drive: The BX-Series shaft drive delivers power smoothly from the mid-PTO to the mid-mount mower. Unlike belt drives, there is no slippage arid maintenance is minimal.
    • High Clearance: The higher clearance of BX-Series tractors makes it easier to travel and mow over uneven ground or over raised obstacles, such as curbs. All BX models offer a clearance of 6 inches with mower
    Other Optional Implements
    • Front Blade
    • Snow Blower
    • Grass Catcher
    • Sweeper
    • Quick-Hitch
    • Land Pride BX Box Scrapper
    • Land Pride BX Food Plot Seeder
    • Land Pride BX Grooming Mower
    • Land Pride BX Post Hole Digger
    • Land Pride BX Rear Blade
    • Land Pride BX Rotary Cutter
    • Land Pride BX Rotary Tiller
    Drive Train
    • Transmission: HST, High-Low gear shift (2 foward I reverse)
    • Drive method: 2WD and 4WD selection
    • Brakes: Wet disc
    • Brakes: Wet disc
    • PTO: Live independent, wet hydraulic clutch
    • PTO Rear: STD (540rpm)
    • PTO Mid: STD (2500rpm)
    Hydraulics
    • Hydraulic pump output: 6.3gpm (24 l/min)
    • 3-point hitch: Category I
    • Lift capacity @24 in. behind pin: 670 lbs. (300 kg)
    • Steering: Hydrostatic Power Steering
    Standard Tire Size
    • Tire size front: Turf: 18 x 8.5-10; Bar: 18 x 8.5-10; Industrial: 18 x 8.5-10
    • Tire size rear: Turf: 26 x 12-12; Bar: 26 x 12-12; Industrial: 26 x 12-12;
    Traveling Speeds
    • Traveling speeds at rated engine rpm forward (Turf): 0-8.4 mph (0-13.5 km/h)
    • Traveling speeds at rated engine rpm reverse (Turf): 0-6.2 mph (0-10.0 km/h)
    Dimensions
    • Length with 3-point hitch: 95.5 in. (2425 mm)
    • Width (w/ turf tires): 44.5 in. (1130 mm)
    • Wheelbase: 55.1 in. (1400 mm)
    • Ground clearance (front axle): 8.7 in. (220 mm)
    • Tread Front: 36.6 in. (930 mm)
    • Tread Rear: 32.2 in. (820 mm)
    • Turning radius (w/o brake): 7.5 ft. (2.3 m)
    • Tractor weight: 1389 lbs. (630 kg)

    Specifications

    Engine
    Engine Manufacturer Kubota D1005
    Engine Type Engine Type: Liquid-cooled, 3-cylinder diesel; Displacement: 61.1 cu. in. (1001 cc)
    Horsepower 25.5 HP (19.0 kW) at 3200 rpm
    PTO HP 19.5 HP (14.5kW) at 320 rpm
    Rated RPM 3200 rpm
    Specifications
    Wheelbase 55.1 in. (1400 mm)
    Height 70.4 in. (1787 mm) w/ROPS
    Width 44.5 in. (1130 mm) w/ turf tires
    Weight 1389 lbs. (630 kg)
    Ground Clearance 8.7 in. (220 mm) (front axle)
    Tire Size Front: Turf: 18 x 8.5-10; Bar: 18 x 8.5-10; Industrial: 18 x 8.5-10; Rear: Turf: 26 x 12-12; Bar: 26 x 12-12; Industrial: 26 x 12-12
    General
    Fuel Capacity 6.6 gal. (25 l)
    Transmission HST, High-Low gear shift (2 foward I reverse)
    Brakes Wet disc
    Hydraulics Pump Output: 6.3gpm (24 l/min)
    Drive Type 2WD and 4WD selection

    Compare Models

    Print








    Year 2010
    Manufacturer Kubota
    Model BX2660 Sub-Compact Tractor
    Style Compact
    Engine
    Engine Manufacturer Kubota D1005
    Engine Type Engine Type: Liquid-cooled, 3-cylinder diesel; Displacement: 61.1 cu. in. (1001 cc)
    Horsepower 25.5 HP (19.0 kW) at 3200 rpm
    PTO HP 19.5 HP (14.5kW) at 320 rpm
    Rated RPM 3200 rpm
    Bore and Stroke
    General
    Fuel System
    Fuel Capacity 6.6 gal. (25 l)
    Transmission HST, High-Low gear shift (2 foward I reverse)
    Brakes Wet disc
    Hydraulics Pump Output: 6.3gpm (24 l/min)
    Drive Type 2WD and 4WD selection
    Specifications
    Wheelbase 55.1 in. (1400 mm)
    Height 70.4 in. (1787 mm) w/ROPS
    Width 44.5 in. (1130 mm) w/ turf tires
    Weight 1389 lbs. (630 kg)
    Ground Clearance 8.7 in. (220 mm) (front axle)
    Tire Size Front: Turf: 18 x 8.5-10; Bar: 18 x 8.5-10; Industrial: 18 x 8.5-10; Rear: Turf: 26 x 12-12; Bar: 26 x 12-12; Industrial: 26 x 12-12
