Showcase Home » Simplicity » Legacy XL 27 4WD Briggs & Stratton Diesel
Model Quick Search

$12,095.00

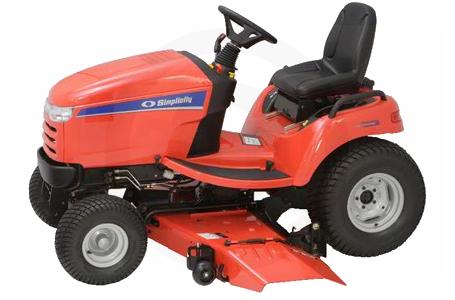

2010 Simplicity Legacy XL 27 4WD Briggs & Stratton Diesel
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Get a Day's Work Done With Time to Spare


With the Legacy® XL subcompact garden tractor, a day's work doesn't have to take all day. We've combined the toughness of a compact tractor with the comfort and control of a garden tractor to give you the power and reliability you need to get the tough jobs done in one versatile machine. Choose from three powerful 27-hp engines, 2- or 4-wheel drive and a variety of attachments. And all models give what no one else can offer the best cut in the business from a 48 in., 54 in., or 60 in. Simplicity Free Floating™ mower with full-width rollers. Get the job done quickly, get the job done right.

  • Automatic Controlled Traction™
  • Differential lock
  • Internal "wet" disc brakes
  • Internal hydraulic PTO for all mowers, and front- and rear-attachments
  • Shift between 2- and 4-wheel drive on-the-go
  • External transmission oil cooler and cooling fan
  • Large 1-5/32 in. rear axles handle up to 1800 lbs. of axle weight
  • 4-way joystick attachment control
  • 12 volt DC outlet
Engine
  • Make/Model: Briggs & Stratton Diesel
  • Horsepower: 27 hp (Gross Torque per SAE J1940)
  • Number of Cylinders: 3
  • Muffler: High Performance
  • Choke/Throttle: Glow Plugs/Throttle
  • Fuel Tank Capacity: 5.5 gal.
  • Battery (cca): 500 cca
Transmission
  • Type: K-92 Hydro w/4WD
  • Speed-Fwd.: 0-9.0 mph
  • Speed-Rev.: 0-5.5 mph
Chassis
  • Frame: 7 Gauge Steel
  • Front Axle: Pivoting Cast Iron
  • Rear Axle Diameter: 1.15625 in.
  • Turning Radius: 55 in. (4WD engaged); 35 in. (disengaged)
  • Front Turf Tread Tires: 18 in. x 8.5 - 8 in. (4-ply)
  • Rear Turf Tread Tires: 26 in. x 12 - 12 in. (4-ply)
  • Attachment Lift: Hydraulic, 4-way joystick
  • Seat: 18 in. Super High-Back
Mower Deck
  • Cutting Width: 48, 54, 60 or 72 in.
  • Height-of-cut: 1.0 - 5.0 in. Infinite
  • Number of Blades: 3
  • Rear Rollers: Full-Width, Follows Contours, Allows Striping
  • Mower Removal: 2 Quick Pins
Features
  • Cruise Control: Standard
  • Power Steering: Standard
  • Tilt Wheel Steering: Standard
  • Headlights: Standard
  • Hourmeter: Standard
  • Fuel Level Indicator, Gauge: Standard
  • PTO Switch: Standard
  • 12 Volt DC Outlet: Standard
  • Cup Holder: Standard
  • Tool Box: Standard
  • Hand Grip Fender Rails: Standard
  • Parking Brake: Standard
Dimensions
  • Length x Width x Height: 81 in. x 45 in. x 51 in. (Width equals tractor with deflector outstretched.)
  • Wheel Base: 59 in.
  • Weight (w/ mower): 1130 lbs.
Attachments
  • 3-Point Hitch
  • 42 in. Snow/Dozer Blade
  • 50 in. Tiller
  • 60 in. Powered Rotary Broom
  • 60 in. Snow/Dozer Blade
  • Box Scraper, 3-point hitch
  • CleanSweep™ Triple Collector
  • Deluxe Hard-Side Snow Cab
  • Dump Cart
  • Front-End Loader
  • Front-End Loader/Backhoe
  • Moldboard Plow - 3-pt. Hitch
  • Mulcher/Leaf Shredder Kit
  • Post Hole Digger
  • Rear Draw Blade, Category 1
  • Single-Stage Snowthrower
  • Soft Snow Cab
  • Tire Chains/Weights
  • Tow-Behind Rotary Mower
  • Two-Stage Snowthrower
  • Wide Body Cart Collector

Specifications

Engine
Engine Manufacturer Briggs & Stratton
Horse Power 27 hp (Gross Torque per SAE J1940)
Engine Type Briggs & Stratton Diesel
General
Transmission K-92 Hydro w/4WD
Wheel Size Front Turf Tread Tires: 18 in. x 8.5 - 8 in. (4-ply); Rear Turf Tread Tires: 26 in. x 12 - 12 in. (4-ply)
Fuel Capacity 5.5 gal.
Deck
Deck Size 48, 54, 60 or 72 in.
Discharge Type Side; Optional: Bagger, Mulch Kit

Compare Models

 Print








Year 2010
Manufacturer Simplicity
Model Legacy XL 27 4WD Briggs & Stratton Diesel
Style Riding
MSRP* $12,095.00
Deck
Deck Size 48, 54, 60 or 72 in.
Discharge Type Side; Optional: Bagger, Mulch Kit
Engine
Engine Manufacturer Briggs & Stratton
Horse Power 27 hp (Gross Torque per SAE J1940)
Engine Type Briggs & Stratton Diesel
Displacement
General
Transmission K-92 Hydro w/4WD
Wheel Size Front Turf Tread Tires: 18 in. x 8.5 - 8 in. (4-ply); Rear Turf Tread Tires: 26 in. x 12 - 12 in. (4-ply)
Fuel Capacity 5.5 gal.
